Part of the challenge with using multiple types of casing for one string include inherent inefficiencies with swapping tools during operations, which contribute to costly non-productive (NPT). Along with the inefficiencies of swapping tool, the process will require personnel to enter the red zone introduce further hazards to the job.
Frank’s TRS utilized multiple casing technologies that not only eliminated the need to swap tools to accommodate different casing types, but also allowed for faster run times and removed personnel from the red zone. Frank’s TRS utilized the Mega Spider, EXTENDED RANGE™ Elevator, Tong Manipulation Arm (TMA), and VERSAFLO™ HD Tool, which are specifically designed to accommodate running multiple casing sizes with one set of equipment while reducing red zone entries.

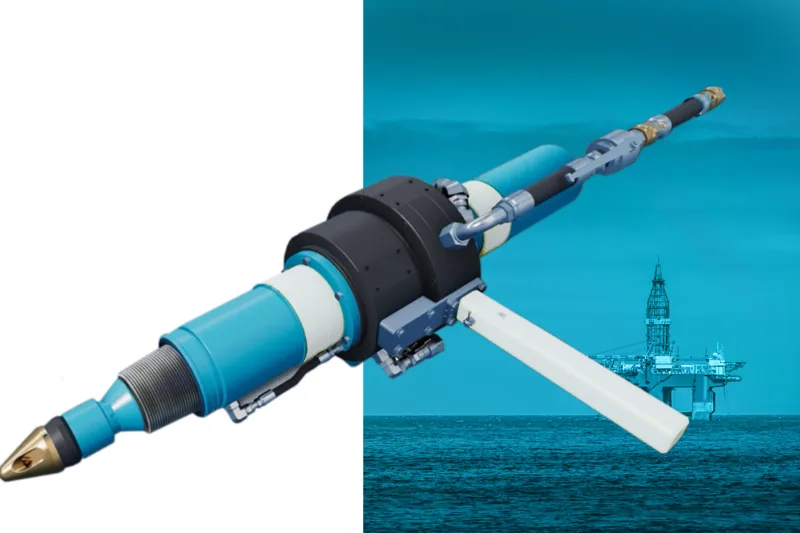

Frank’s TRS tailored solution, combined with operational planning and execution, led to a record setting casing run, with a total of 5 hours saved and zero rejected connections. Due to the size versatility of the Mega Spider and EXTENDED RANGE™ Elevator equipment package, the casing string was installed without requiring tools to be swapped as the OD of the casing changed and contributed to the time and direct cost savings. Additionally, the TMA system, which not only allows for the manipulation of Frank’s remote tong system, but also supports the full weight of the tong, contributed to the efficiency gains during the installation of the casing string, and reduced the need for personnel in the red zone. Frank’s TRS VERSAFLO™ HD Tool, a specialty fill-up and flowback tool that can be utilized on both casing and drill pipe, seamlessly reduced the time to crossover between the casing and landing strings during the operation, which greatly contributed to the overall efficiency gains during the operation.
