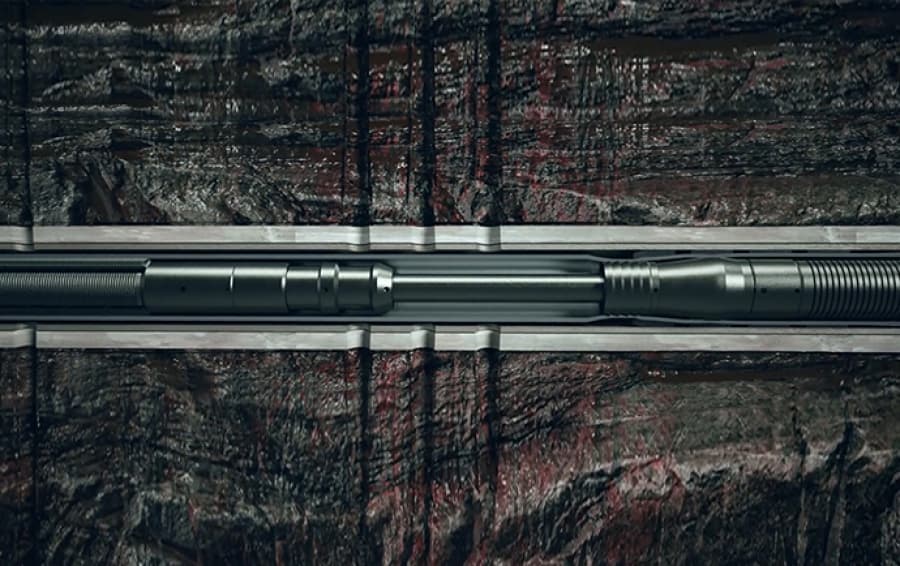

ReLine MNS Casing Patch

Our flagship ReLine MNS system provides a single trip isolation solution with significant added value of no shoe milling, enabling the relining and isolation of various casing integrity concerns.

Once installed the ReLine MNS provides minimal loss of inner diameter (ID), whilst providing high burst and collapse ratings.

Applications

Isolation of unwanted water & gas
Isolation of sand screens to negate sand ingress
Corrosion isolation
Isolation of casing & tubular leaks
Isolation of leaking or compromised completions components:
SSD (Sliding Side Door)
ICV (Inflow Control Valve)
ICD (Inflow Control Device)
GLV (Gas Lift Valve)
CIV (Chemical Injection Valve)
Velocity string
Refrac/recompletion
Parted casing
Leaking liner hanger
Zonal isolation

The MNS cased hole system is designed for deployment primarily on jointed pipe but can be adapted in certain applications to be deployed on coil tubing, providing the ability to cover both long and short intervals.

Features / Benefits

System activates without the need to drop balls or darts down the ID of the work string - saving rig time
Multiple hydraulic cylinders capable of exerting high force for pipe expansion ratio of greater than 25% with a high safety margin
Negates the requirement for a second trip as no shoe drill out is required after expansion
System can be deployed through ID restrictions such as frac sleeves.
